Level 1 Installation
2. Disassembly
3. Thread the Harness
4. Threading the Harness, Cont'
5. Opening the Harness
6. Level 1 Install (rear connections)
Making the connection
Tape up the connection
STST (Strip, Twist, Solder, Tape)
Rear harness
Rear Car Connectors
Wiring Protocol
Brown Pin 1 to black/yellow with silver dots Switched 13.6V MCM A-9 (tap)
Blue Pin 6 to Black/Yellow MAMODE 2 MCM A-3 (tap)
White with orange stripe to Brown/Yellow with silver dots wire Logic ground MCM B-9 (tap)
7. Fan Diodes Install
8. Battery Amp Monitor Rear Connections
9. Mounting the MIMA system in the car.
10. Level One wiring test.
11. Level 1 Check first power up
12. The first MIMA operational test
13. Testing the fan control wiring
14. Confirming temp probe and fan control operation
Level 2 install
Theory of Operation

Making the connection

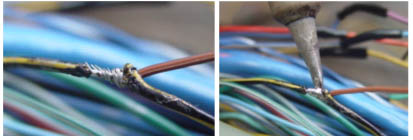

Once the insulation is stripped back, twist the tapping wire around the bare wire, Solder it, being careful not to leave any sharp points sticking out that could pierce the tape and short to another wire.
Making the connection
