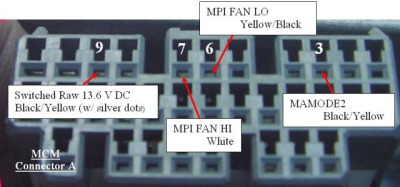

Brown Pin 1 to black/yellow with silver dots Switched 13.6V MCM A-9 (tap)

click to expand
The Brown wire in that is loose in the harness end taps onto the black wire with a yellow stripe and two silver dots coming from the MCM connector A, pin 9 . STST the connection. This is the main power to the MIMA card.
