Learning to drive with MIMA
Hardwired Harness
Level 1 Installation
2. Disassembly
3. Thread the Harness
4. Threading the Harness, Cont'
5. Opening the Harness
6. Level 1 Install (rear connections)
7. Fan Diodes Install
Yellow Pin 4 to Red/Yellow wire MAMODE 1 ECM side (Splice)Green Pin 5 to MCM side of wire(splice)
Violet Pin 7 to Blue/Black CMDPWR ECM side (Splice)Gray Pin 8 to MCM side (splice)
Red Pin 12 to Blue /White VSS MCM C-4
Fan control Diodes (Tap)
8. Battery Amp Monitor Rear Connections
9. Mounting the MIMA system in the car.
10. Level One wiring test.
11. Level 1 Check first power up
12. The first MIMA operational test
13. Testing the fan control wiring
14. Confirming temp probe and fan control operation
Level 2 install
Theory of Operation

Fan control Diodes (Tap)

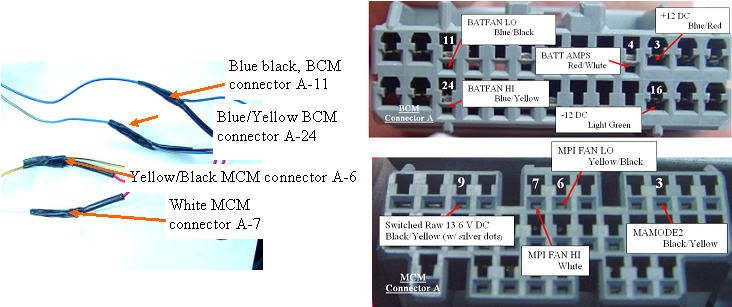

Fan control diodes are already connected to the red wire in the MIMA harness. The other side of the diodes will be connected to four of the wires in the harness.
Fan control Diodes  (Tap)
