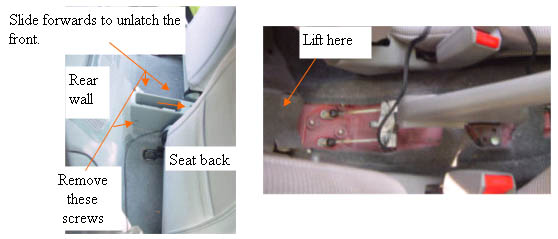

Remove the cover of the emergency brake.

Once the e-brake cover is removed, lift the rear wall rug to expose the square hole in the rear wall.
Remove the cover of the emergency brake.
