Feed the wire fish

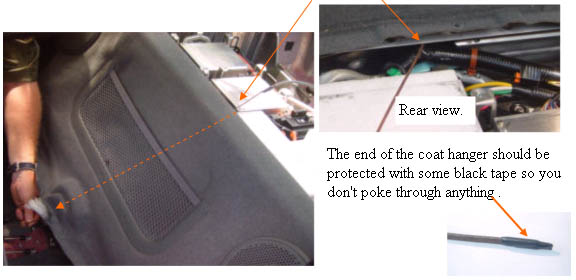

Feed the end of the wire fish in and down, while watching for an opportunity to grab it in the square hole at the rear of the e-brake area.

The end of the wire fish should be protected with some black tape so you don't poke through anything.

Feed the wire fish
