3. Threading the DB-25 to the front

3. Threading the DB-25 to the front
running the db25

In the rear of the car we have the MCM plug in adapter with temperature probes for the power electronics and the HV battery pack, current probe adapter, and fan control adapter. The signals run to the front of the car through a DB-25 computer cable.

running the DB-25 to the front
fishing it through

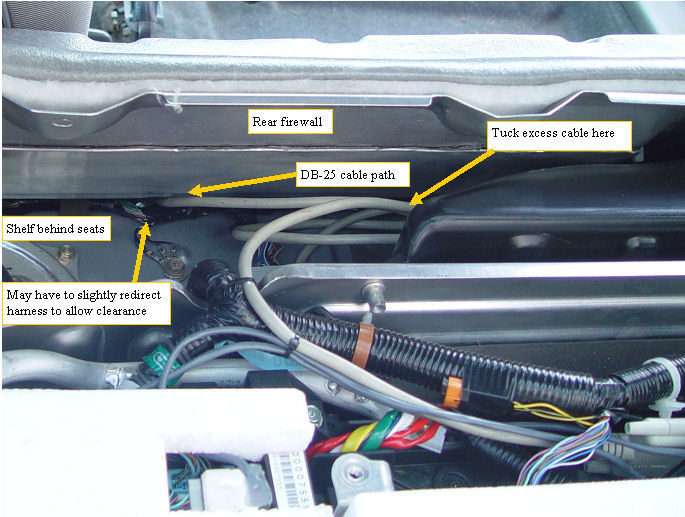

Carefully feed the DB-25 down through the opening between the shelf and the rear firewall. The rectangular shape of the connector allows it to easily fit through the space.
The db-25 cable will be run to the small opening under the rear carpet flap in the rear of the e-brake console.
If you have trouble getting it between the aluminum firewall and the wiring shelf behind the seats, you may have to bend the stock harness and ground wires slightly to make room for the db-25.
