Engine Blanket 10/20/07Got the blanket installed on the Insight today. Here'as a shot of the underside before the belly panels are installed.
Location of the Thermocouples:
input 0: IMA motor / clutch housing
input 1: warm air pickup from the cat
input 2: air filter
input 3: ambient
input 4: CV boot below the cat
input 5: between cat and block
imput 6: lower O2 sensor wires
input 7: #2 coil pak above cat
|
 | |
|

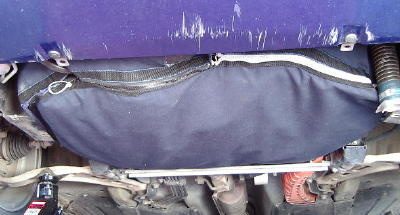

Bottom side of Engine Blanket.
|
|
|
