IMA motor temp

IMA motor temp
IMA temp

With MIMA a lot of assist can be sent to the IMA motor, but we have no way to know if it is getting too hot.

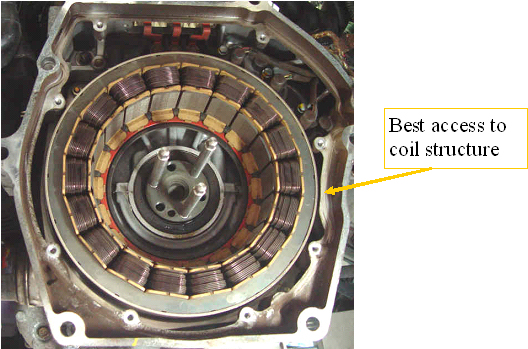

A thermal probe could be attached to the magnet structure by drilling a small hole in the side case right where the case is in the closest proximity to the coil structure.
