disassembly of clutch and flywheel from IMA motor

disassembly of clutch and flywheel from IMA motor

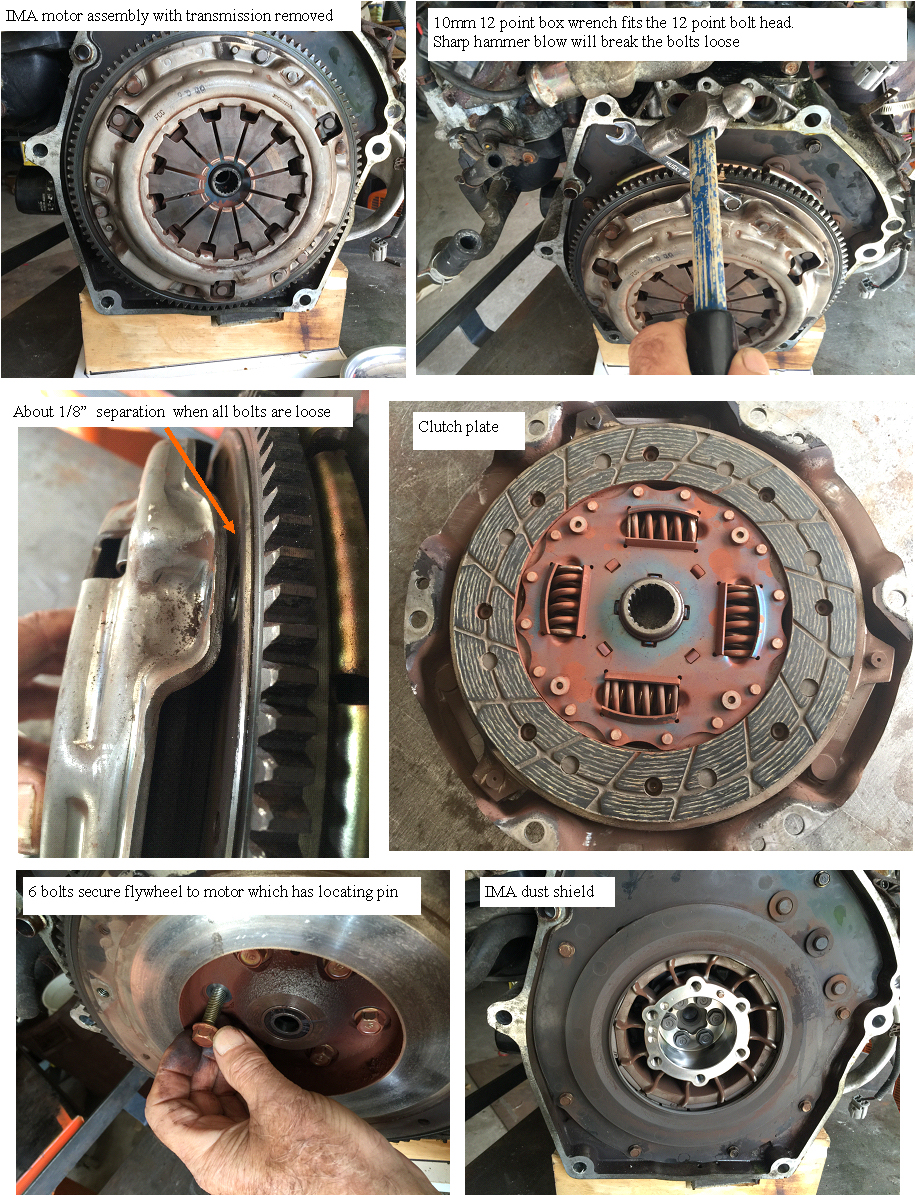

clutch and flywheel removal

got the clutch and flywheel removed from the IMA motor.
As well as measuring the force required to press the clutch throw out springs fully.
I put the clutch spring assembly on bathroom scale while pressing in the spring with my drill press.
Took ~370 lbs to fully disengage the clutch. This will be an end load on the rotor bearings.
