Finishing up the boost power supply
|
![Finishing up the boost power supply](https://99mpg.com/getimage.asp?id=/projectcars/thebesthybridmix/finishinguptheboos/&filename=boosterpowersupply1.jpg&mode=0) | |

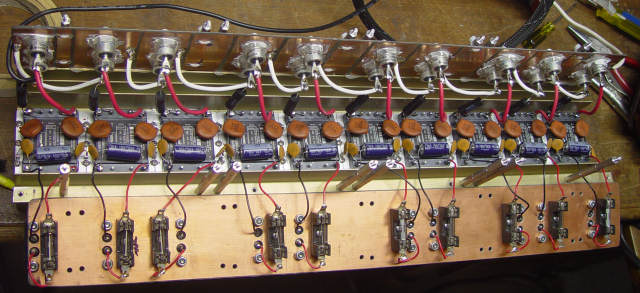

The basic supply with diodes,fuses, and terminals
|
I got the diodes and capacitors that I needed, and have wired up the unit with fuses, and the output diodes. I want to do a bit more reading on the output capacitors before I power up for the first time. I still need to build the current control system, and have included the 0.005 ohm 1% current sense resistors in the initial wiring.
|
|
