Inside the overnight charger

Inside the overnight charger
Inside the Overnight charger

First full prototype is running. Found that we need a fan to dissipate the heat output of all the densly packed supplies.
Should have anticipated this, as here is a lot of power in that box.
4- 50 W 48V supplies
1-35 W 12V supplu
1 35W 700 MA CC supply
1 20 W 350MA CC supply

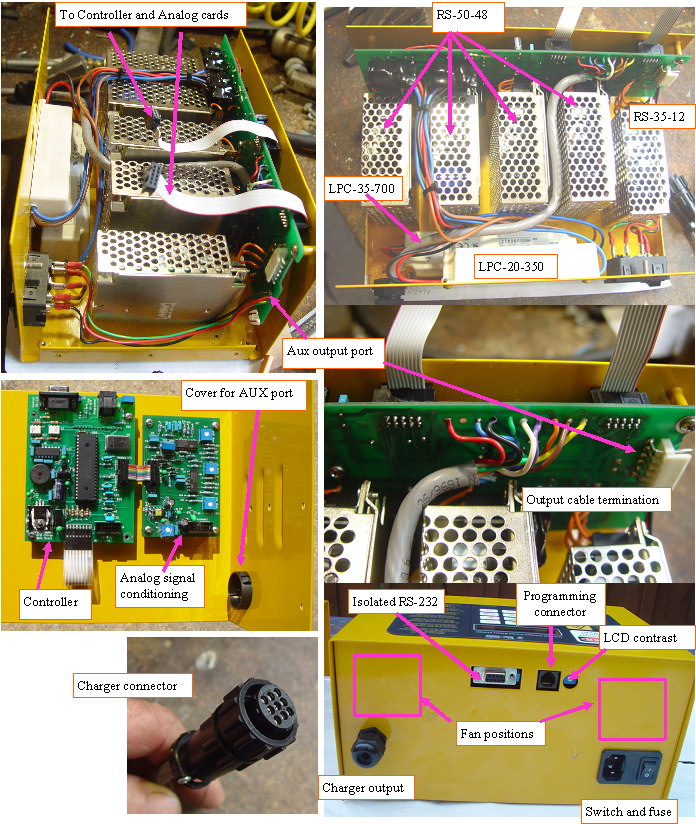

Photo shows the layout.
