Heat sink fins

Heat sink fins
getting started with the heat sink plates

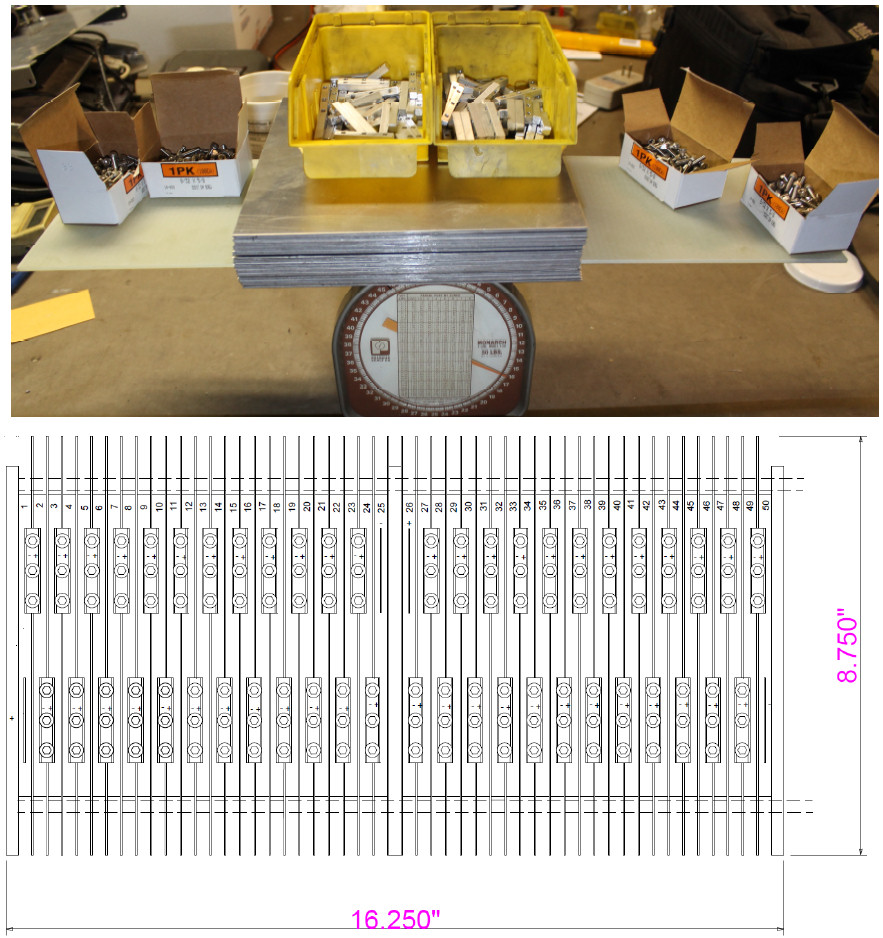

Took a ride to my local metal supplier and got a full 4X8' sheet of 0.032 aluminum, and cut it up into 55 plates. put the plates the screws, the G10 insulator and the bars on a scale to get a rough idea as to the weight. Looks like ~ 16 lbs so far. will still need 3 1/4" plates for the ends and middle,the threaded ros and nuts, and the wiring and BMS boards and the enclosure. The bottom drawing shows the way I intend to stack and connect the cells
