Datalogging Labview style

Datalogging Labview style
Test run with labview data logger

I have an Appointment to meet with a Labview expert on Sunday, and I hope to come home with a runtime version of my Labview datalogger that you can download and try.
The screen shots above are where I am today, and I expect it will look quite different after my Sunday session.

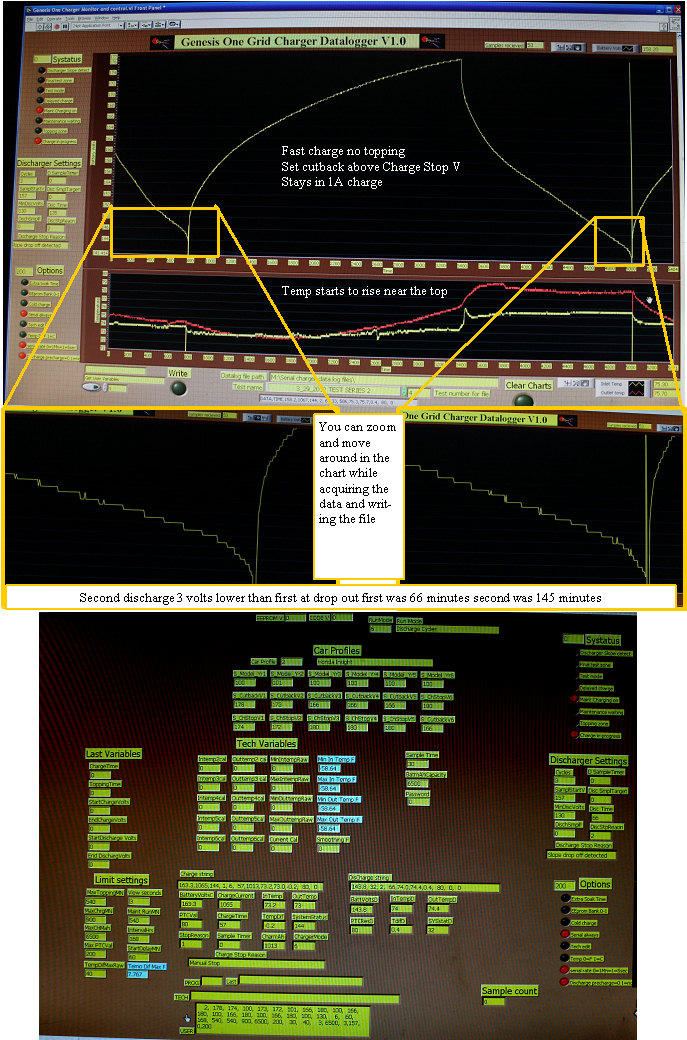

This graph shows the end phase of a discharge followed by a charge then the second discharge and begining of the following charge, The chart can be zoomed to a region of interest, you can scroll around, change the scales, all while logging the data to disc and displaying the current charge.
Software also allows upload of all variables, and can permanently write new values to all eeprom locations as well as read them individually.
The charger can be started and stopped from here as well.
