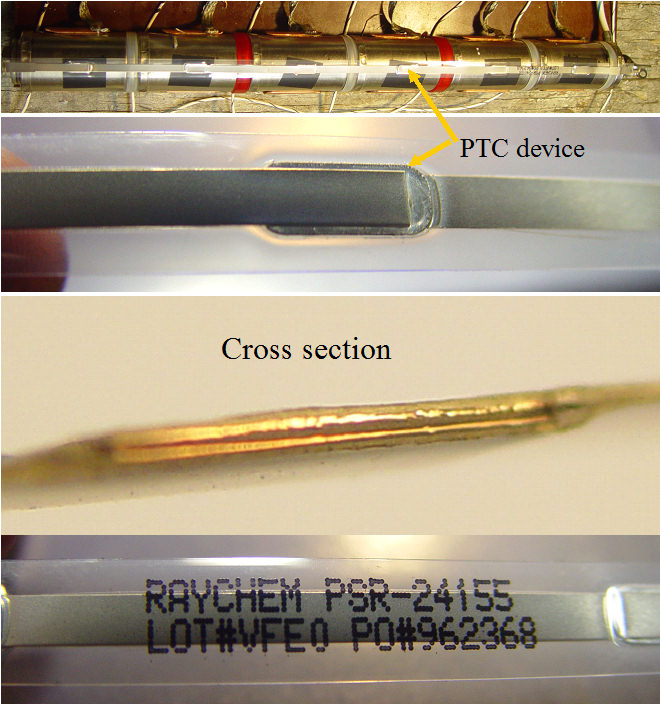

PTC strips exposed
|
![PTC strips exposed](https://99mpg.com/getimage.asp?id=/blog/batterypacksexpose/ptcstripsexposed/&filename=ptc_exposed.jpg&mode=0) | |
Funny how we assume what is inside
|
Finally got a look under the black and clear covers of the PTC strip. It turns out it is really 6 discrete PTC devices that are connected by stainless steel strips, so the active temperature sensitive area is located right in the center of the cells.Very interesting, I will run a resistance to temperature profile on one, and see what the actual characteristics are.
|
|
