Max IMA batteries show improved internal construction

Several people have picked up the ball that was dropped by Hybrid battery repair, and are offering new sticks for the civic and the insights, so it is time that we see just how well the sticks are built and how well they perform.

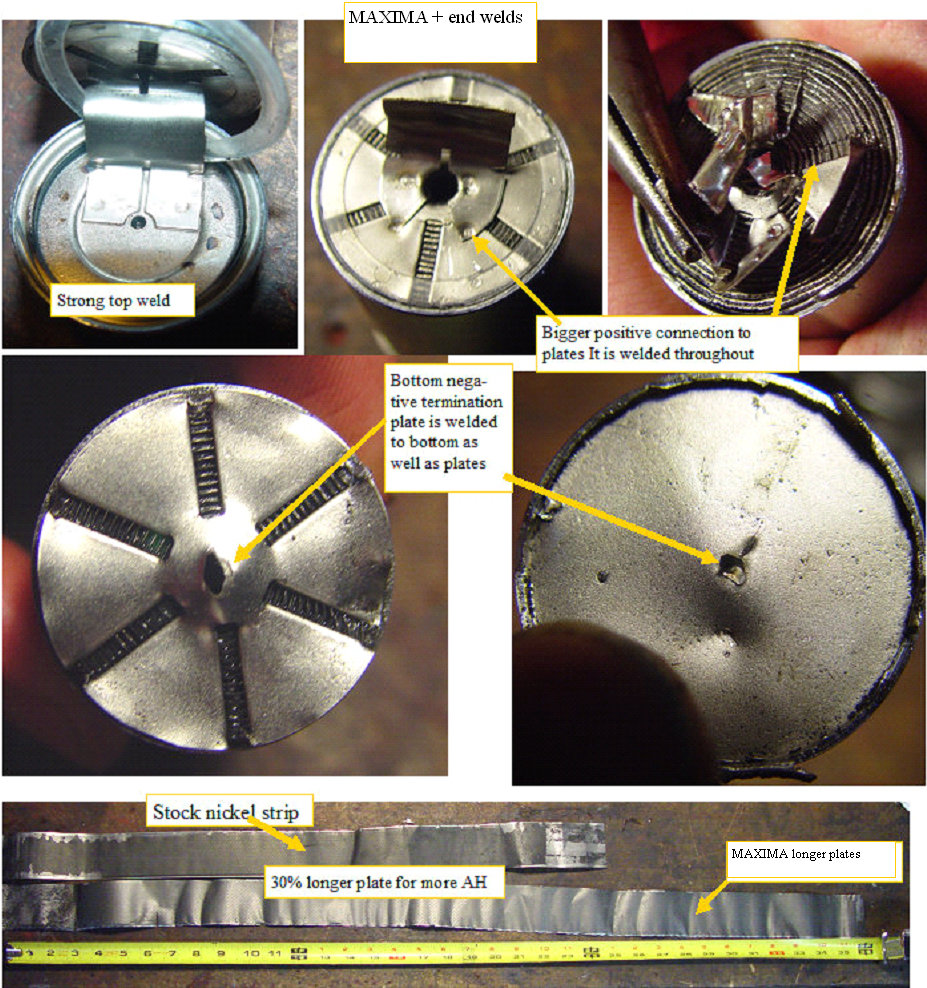

I got 4 sets of 20 subpacks from Bumblebee, and am in the process of evaluating the performance, but we also know that the construction of the cells is a big factor in how well they can handle the currents involved with use in a Hybrid car. The first photo shows the inner cell construction of the MaxIMA cell
more and longer weld points on this cell allow the current to flow with lower internal resistance, so in theory that should translate into less voltage drop under the same load as well as less heating.
