Battery current sensor

Battery current sensor

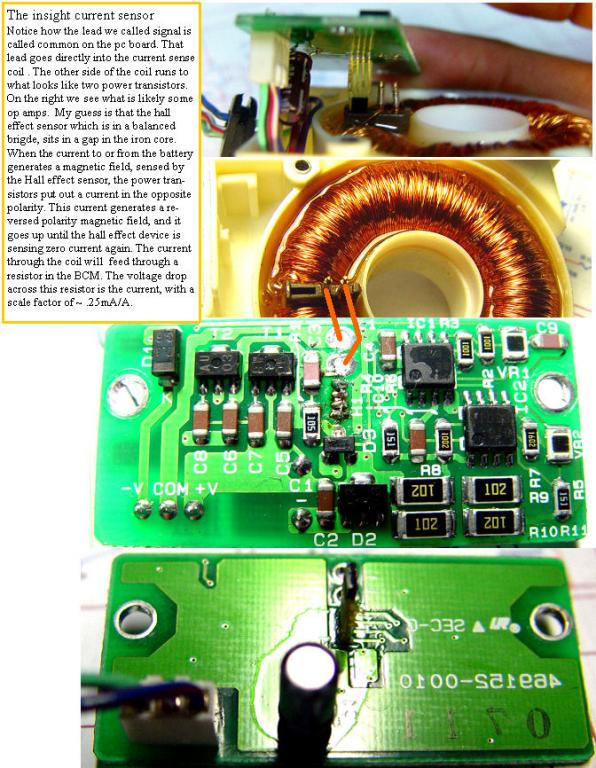

How it works inside?

If a larger capacity battery pack is used in the Insight, we must "fool" the BCM into allowing the full AH capacity of the new pack to be used.
I setup a BCM and junction board with current sensor, to determine the best way to fool the current sensor into thinking that only 1/10 of the actual current is passing through it. After a thorough analysis of the system, I determined that the Insight battery current sensor was outputting a current loop signal with ~.20mA/A, and since it is a current loop, a simple current dump resistor to BCM ground should do it.
