Attaching the test probes and test fan to the first generation civic harness

Attaching the test probes and test fan to the  first generation civic harness
Attaching the test probes and test fan to the first gen civic harness

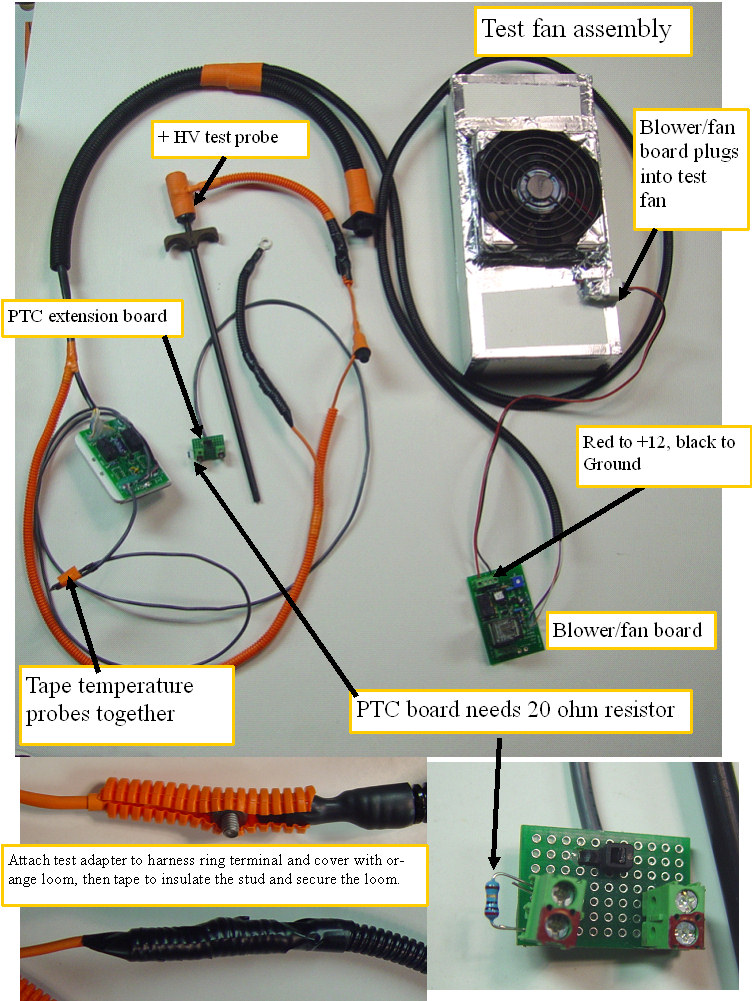

The probes attach to the civic in the same fashion as they do to the Insight harness.The 20 ohm resistor is required on the PTC extension cable Probe side as shown.
The fan cable red lead attaches to the +12V terminal of the fan board, and the black to the ground. The plug mates with the plug on the test fan.
Add some weights to bots sides of the box to assure a good seal, so the pack is adequately cooled during the charge.
