DC/DC mounting and cooling

DC/DC mounting and cooling

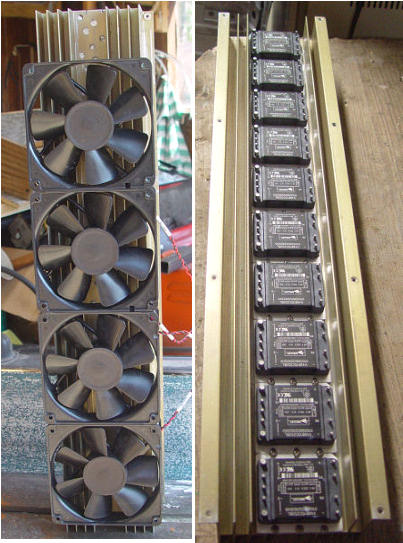

I was lucky enough to find a compatible heat sink for the dc/dc modules. It took some machining to get things to fit, but this should be large enough with the fans to keep them in the temp zone that they like.The fans can be speed controlled if desired to keep the noise down.
The dc/dc converters will need some high current isolation diodes and bypas capacitors that I did not have in my parts bins, so I will not be able to finish the assembly until next week.
